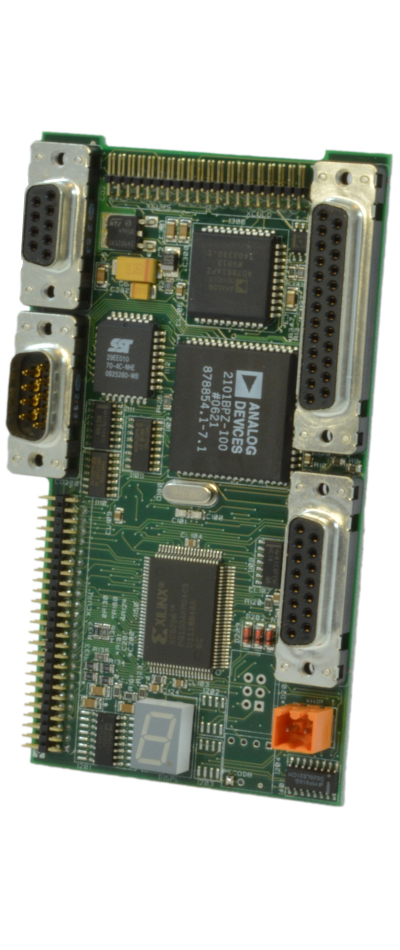

Control Unit 2002 - Serie 2000 & 4000

The Control Unit 2002 is the extension of our standard control unit for the serie 2000 & 4000 power stages. This unit is the interface between your command and our power stage.

Everything you need for a simple integration is available in this CU. Well proven and reliable electronic, simple programming and monitoring software, Analog interface and Hyperface feedback as default, optimal energy management system, multi-loop control for speed and torque regulation, smooth sinusoidal generated current output ensure smooth torque and optimum regulation throughout the speed range.

Key Features

Analog (+/- 10V) interface for speed and torque control

2 limit switchs inputs for overrun protection

External DC supply available to keep the position & alarm in case of main line outage / safety interruption

Configurable virtual encoder output for external position control or master digital shaft / gearing

RS232 serial port and RS485 serial port for multi axis controler system

SSI (Synchrone serial interface) available as default

Hyperface Feedback as default

Endat 2.1 Feedback as an option

Simple alarm display

Strong and reliable connectors

Downloads

			Hyperface Feedback	Endat 2.1 Feedback	Operating Manual

Softwares

			Windows user 3.03		DOS user
