| Etage | Ratio | Couple nominal (Nm) |
Couple max (Nm) |
Vitesse nominale (tr/min) |
Vitesse max (tr/min) |
Force max radial (N) |
Force max axial (N) |
Jeu (Arcmin) |
Efficacité (%) |
Poids (kg) |
| 1 | 3 | 310 | 620 | 2000 | 3500 | 3200 | 3000 | 3 | 95 | 19 |
| 4 | 605 | 1250 | 2000 | 3500 | 3200 | 3000 | 3 | 95 | 19 | |
| 5 | 420 | 840 | 2000 | 3500 | 3200 | 3000 | 3 | 95 | 19 | |
| 8 | 270 | 540 | 2000 | 3500 | 3200 | 3000 | 3 | 95 | 19 | |
| 2 | 12 | 680 | 1360 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 25 |
| 16 | 680 | 1360 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 25 | |
| 20 | 680 | 1360 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 25 | |
| 25 | 460 | 920 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 25 | |
| 32 | 680 | 1360 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 25 | |
| 40 | 460 | 920 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 25 | |
| 64 | 310 | 620 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 25 | |
| 3 | 64 | 900 | 1800 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 31 |
| 80 | 900 | 1800 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 31 | |
| 100 | 900 | 1800 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 31 | |
| 125 | 580 | 1160 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 31 | |
| 160 | 580 | 1160 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 31 | |
| 200 | 580 | 1160 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 31 | |
| 256 | 900 | 1800 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 31 | |
| 320 | 580 | 1160 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 31 | |
| 512 | 400 | 800 | 2000 | 3500 | 3200 | 3000 | 5 | 95 | 31 |

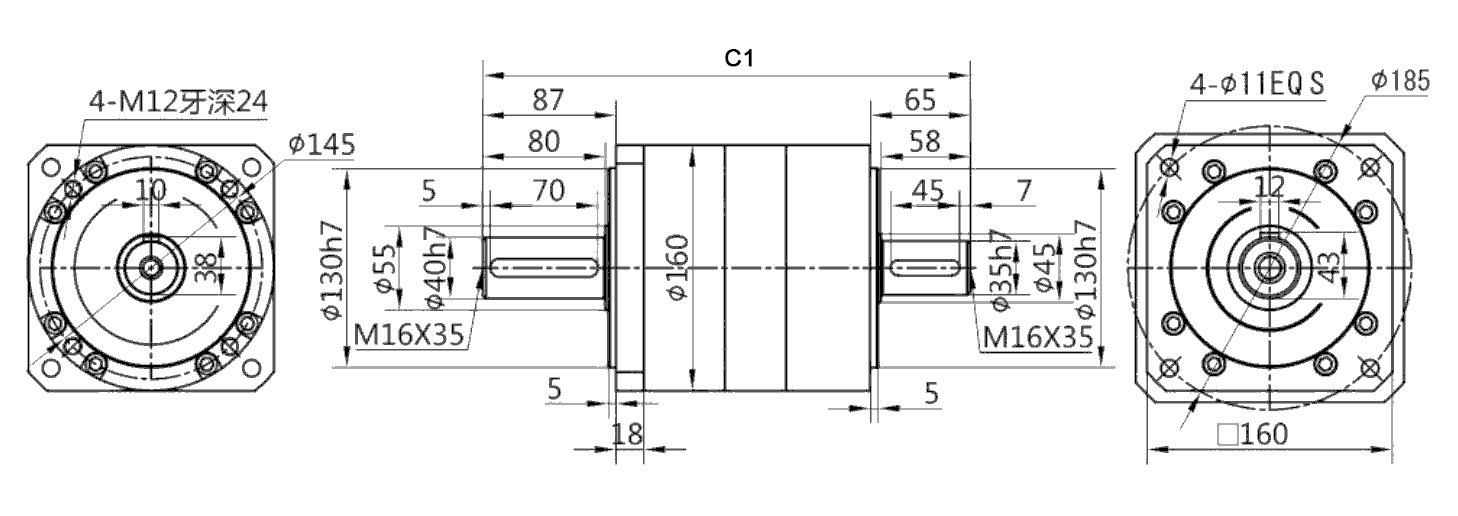

| Taille | C1 |
| 1 | 318 |
| 2 | 356 |
| 3 | 394 |
